At C&K Designs we have three different size motors currently available in several different versions. All our products are CNC machined to high tolerances and highly prefabricated. This allows easy home assembly with every day tools. All ready to run motors are fully individually tested before dispatch. All motors and kits are supplied with the new C&K Designs clamp mount tube. Our motors can be fitted and flown without any extra parts needed.
Please email if you require any further information.

Understanding our codes: 2C or 3C denotes the intended lithium cell to be used, either 2cell or 3cell lithium. All our motors are aimed exclusively at lithium cells as this is definitely the future of model flying. The benefits of lithium power over NiCad and NiMh are lighter weight, smaller size and higher discharge rate. However our motors work equally well with the comparative Nicad or NiMh cells.

20, 22 or 40 denotes the weight of the finished motor in grams.

310 or 340 denotes the maximum static thrust power at nominal voltage of the finished motor in grams. DUAL is named because the motor is so diverse it can be used for most applications up to 700 grams thrust.
3D, high speed, park fly, slow fly and helicopter refer to their relevant applications.

2C-20-310 The original light weight shock flyer type motor designed for use with 2Cell lithium batteries.

Specifications:
Weight, 20 grams
Maximum number of cells, 2 lithium.
Maximum prop, 8x4.3 - 9x4.7.
Maximum sustained current, 6.8Amps.
No load current, 0.3Amps at 6.6V.
No load RPM/Volt, 1880.

Available as:2C-20-310 Ready to run . designed of use with 2cells. Supplied with clamp tube mount ready to fit.

Available as:2/3C-20-310 ARTF kit. A diy kit version for easy home assembly designed of use with 2 or 3 cells. Instructions are included detailing the winding procedure for both versions.

Available as:2/3C-20-310 ARTF stage one kit. A diy kit which has the magnets pre fitted and only requires the stator to be wound and assembled. Instructions are included detailing the winding procedure for both versions. You might be interested in Suzuki GSXR600

3C-20-340 The original light weight shock flyer type motor in a 3cell lithium version.

Specifications:
Weight, 20 grams
Maximum number of cells, 3 lithium.
Maximum prop, 8x4.3 - 9x4.7.
Maximum sustained current, 5Amps.
No load current, 0.5Amps at 9.9V.
No load RPM/Volt, 1210.

Available as:3C-20-340 Ready to run . designed of use with 3cells. Supplied with clamp tube mount ready to fit.

Available as:2/3C-20-310 ARTF kit. A diy kit version for easy home assembly designed of use with 2 or 3 cells. Instructions are included detailing the winding procedure for both versions.

Available as:2/3C-20-310 ARTF stage one kit. A diy kit which has the magnets pre fitted and only requires the stator to be wound and assembled. Instructions are included detailing the winding procedure for both versions.

3C-40-Park fly versions The same great design as the original shock flyer version. But slightly bigger and more powerful to suit park flyer models. But at 40 grams is lighter than some other manufactures indoor motors.

Available as:3C-40-High speed park fly Ready to run . Designed of use with 3cells. Aimed at models originally using speed 400 motors and 5x5 props. Has increased torque and speed to allow 6x5 and larger props resulting in much more static thrust and easier launch for such models. Supplied with clamp tube mount ready to fit.
Specifications:
Weight, 40 grams
Maximum number of cells, 3 lithium.
Maximum prop, 5x5 - 7x5.
Maximum sustained current, 12Amps 30 sec.
No load current, 0.8Amps at 11.1V.
No load RPM/Volt, 1844.

Available as: 3C-40-3D park fly Ready to run. Designed of use with 3cells. Aimed at 3D fun fly, sport or war bird type models originally using speed 350 - 400 motors or gearboxes. Has increased torque and speed to allow use of 9x4.7 and larger props in direct drive. Resulting in much more static thrust and easier launch even with a smaller prop. Supplied with clamp tube mount ready to fit.
Specifications:
Weight, 40 grams
Maximum number of cells, 3 lithium.
Maximum prop, 9x4.7 - 10x4.7.
Maximum sustained current, 11Amps 30 sec's.
No load current, 0.4Amps at 11.1V.
No load RPM/Volt, 1022.

Available as: 3C-40-Slow fly park fly Ready to run. Designed of use with 3cells. Aimed at slow fly models such as GWS piper cub which does not need prop hanging power but will benefit with longer flight times due to the increased efficiency. Has increased torque and speed to allow use of 10x4.7 props in direct drive. Resulting in much more static thrust and easier launch. Supplied with clamp tube mount ready to fit.
Specifications:
Weight, 40 grams
Maximum number of cells, 3 lithium.
Maximum prop, 8x4.3 - 9x4.7.
Maximum sustained current, 9 Amps.
No load current, 0.3Amps at 11.1V.
No load RPM/Volt, 890.

Available as: 3C-40-Dual DIY motor kit. A diy kit version for easy home assembly. Instructions are included detailing the winding procedure.

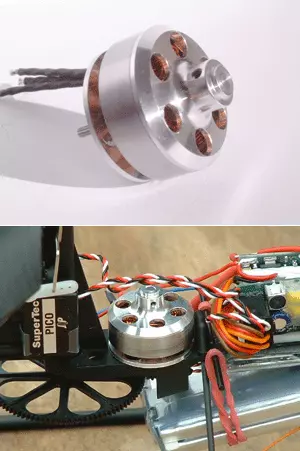

2C-22-Helicopter The new light weight Indoor helicopter type 2cell motor -

Specifications:
Weight, 22 grams
Maximum number of cells, 2 lithium.
Maximum sustained current, 8 Amps 30 sec's.
No load current, 1.1Amps at 7.4V.
No load RPM/Volt, 4520.

Available as:2C-20-310 Ready to run . designed of use with 2cells. Supplied with clamp tube mount ready to fit.

Available as:2C-22-Helicopter ARTF kit. A diy kit version for easy home assembly designed of use with 2cells.

C&K Designs 3C-20-340 Brushless Motor

Same great design as the original 2C-20-310.Still only 20 grams in weight.

Optimized to run on 3 Cells with a increase in thrust and response.

C&K Designs 2C-20-310 Brushless Motor

Our 2C-20-310 is a powerhouse of a motor, look at the specs.
True Weight only 20 grams. Includes built in prop adapter. Optimized to run on a two cell 340mah lithium battery, currently the lightest most powerful, most popular cell around.

A massive 310 grams of thrust on only a 9x4.7 prop.

Highly efficient, will return a good 10 minutes of 3d flying on a 340 mah battery.

High strength, made from aerospace grade materials of high tolerances.

Some motors state they weigh 30-40 grams. Try weighing it and you will find nothing comes close to the 2C-20-310.

C&K Designs is ideal for the novice. The light AUW weight, typically 160 grams for the shock flier. Means the plane will take off and fly at a walking speed and is very controllable.

C&K Designs is ideal for the expert. The performance is blistering, prop hang on 1/3 throttle then pull out vertical, every maneuver you can think of in your local sports hall.
